Note:Please note that there are two choice in this link ,The choice of DAC069 means that the conveter is 3 Optical SPDIF Toslink + 1 Coaxial,The choice of DAC067 means that the converter is 1 Optical SPDIF Toslink + 1 Coaxial,please choose carefully ,if you buy the wrong converter,Conceited at your own risk！
DAC Converter 192kHz Digital to Analog Audio Converter 3 Optical SPDIF Toslink + 1 Coaxial Switch to Analog Stereo L/R RCA 3.5mm Audio Adapter Support Volume Control/ Mute / Power ON or OFF by IR Remote Control

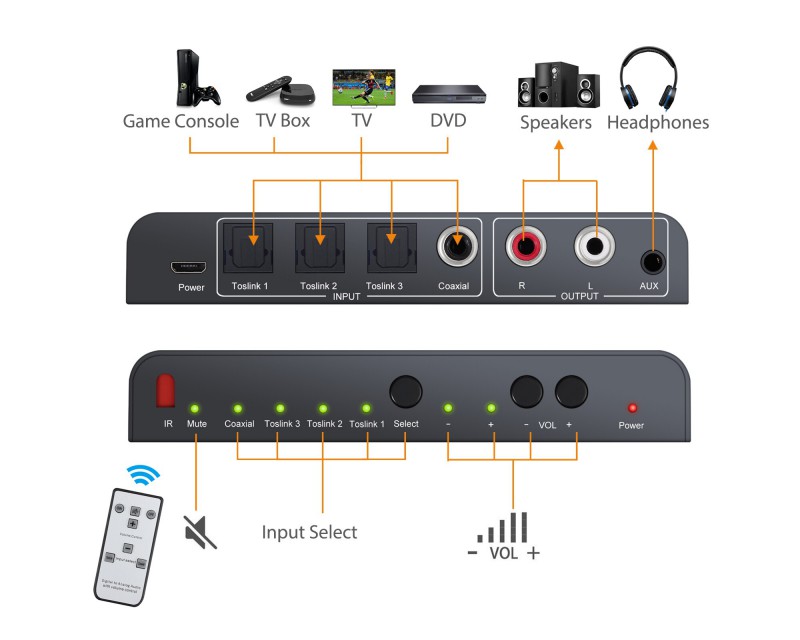

1. Digital to Analog Audio Converter, Convert Coaxial/ Toslink/ Optical to Analog L/R Audio, with 3.5mm Audio Output, It can Connect to the Headphone, Headphone Amplifier Function.（please set the PCM or LPCM setting as below: Setting--sound--audio format. Not Support Dolby, DTS, or other 5.1 channel surround sound signals.） 2. IR Remoote Control, With IR wireless remote control, easily adjust volume/ choose coaxial or toslink input/ Mute/ Power ON or OFF by using the IR wireless remote. In order to received signal better please make sure the remote is facing the infrared IR indicator on the converter. 3. 3 Port Toslink + 1 Port Coaxial Switcher, optical and coaxial devices can be synchronized to be connected the converter and can be selected as an input via the IR remote control. 4. 192kHz 24-bit Sampling Rate, Provides Electromagnetic-noise-free Transmission, Supports Sampling Rate at 32, 44.1, 48, 96 and 192kHz, and 24-bit SPDIF Incoming Bit Stream to Left and Right Channels. 5. Aluminum Alloy Casing Design, Overall Shielding without Signal Interference, Compatible with HD TV, PS3, PS4, Xbox one, HD DVD, Sky HD, Apple TV, Plasma, Blu-ray, Home Cinema Systems, AV Amps, etc.
Specification: Support Audio Format: PCM Signal-to-Noise Ratio: 105DB Separating Degree（1KHZ）: 94DB THD+N: -90DB Total Harmonic Distortion(THD): 10Hz~20KHz 0.25-0.065% Blocking Time: 0.577Fs Sampling Rate: 32~192 KHz Bit Rate: 16~24 Bit Input Electrical Level: ±0.3V Output Electrical Level: 3V Maximum Output Power: 0.3W Earphone Output Power: 0-250mW Output Impedance: 10 ohms Working Voltage: +5V Dimension: 4.54" x 2.45" x 0.76"
Please Note: 1. Set your TV's Audio output to the PCM/LPCM format. 2. This converter doesn't support 5.1 Channel such as dolby and DTS. 3. PS4 Pro and PS4 Slim Can not use this converter as they haven't optical fiber output interface. 4. For Samsung TV, if there is no sound even you set the audio output to the PCM/LPCM format, please turn on the TV external speakers (Menus-Sounds- Speaker Setup- HESB/external speaker-ON)
Package Content: 1 x Digital to Analog Audio Converter 1 x IR Remote Control 1 x 1m Toslink Cable (Optical Cable) 1 x USB Cable 1 x User Manual
